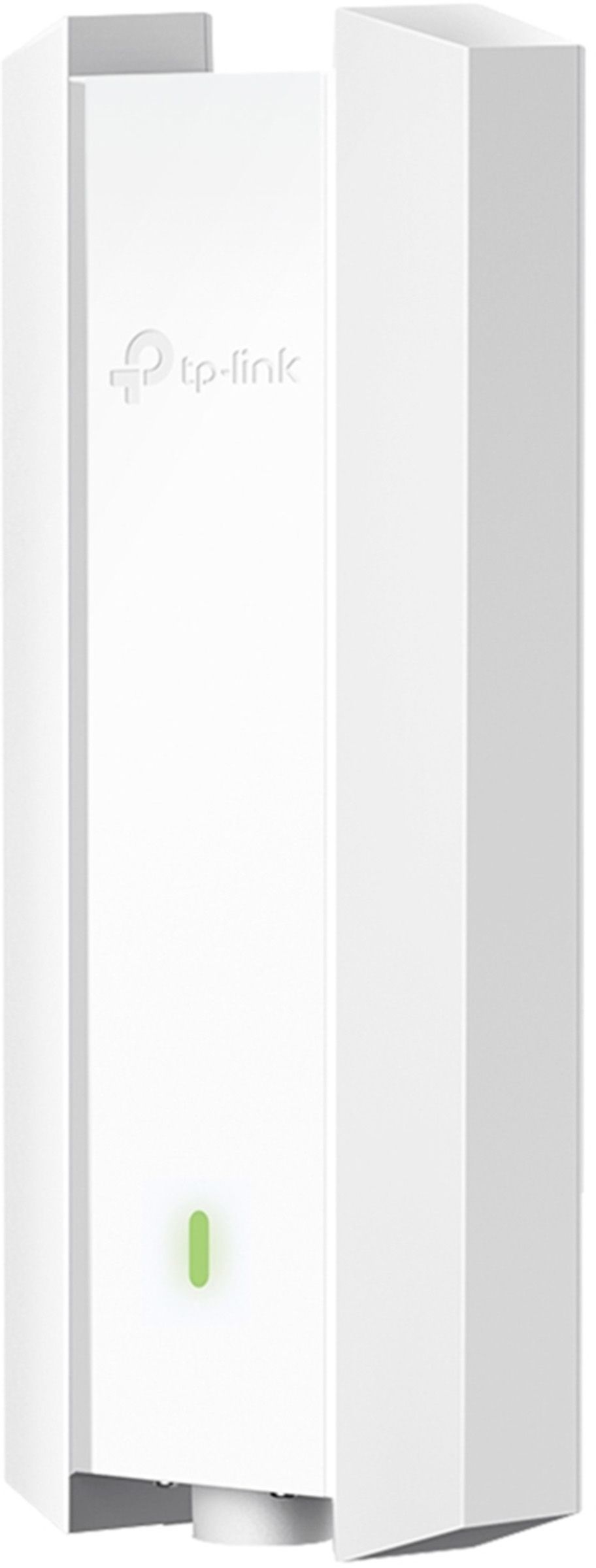

Routeur TP-LINK - EAP610OUTDOOR

CARACTERISTIQUES MATERIELLES

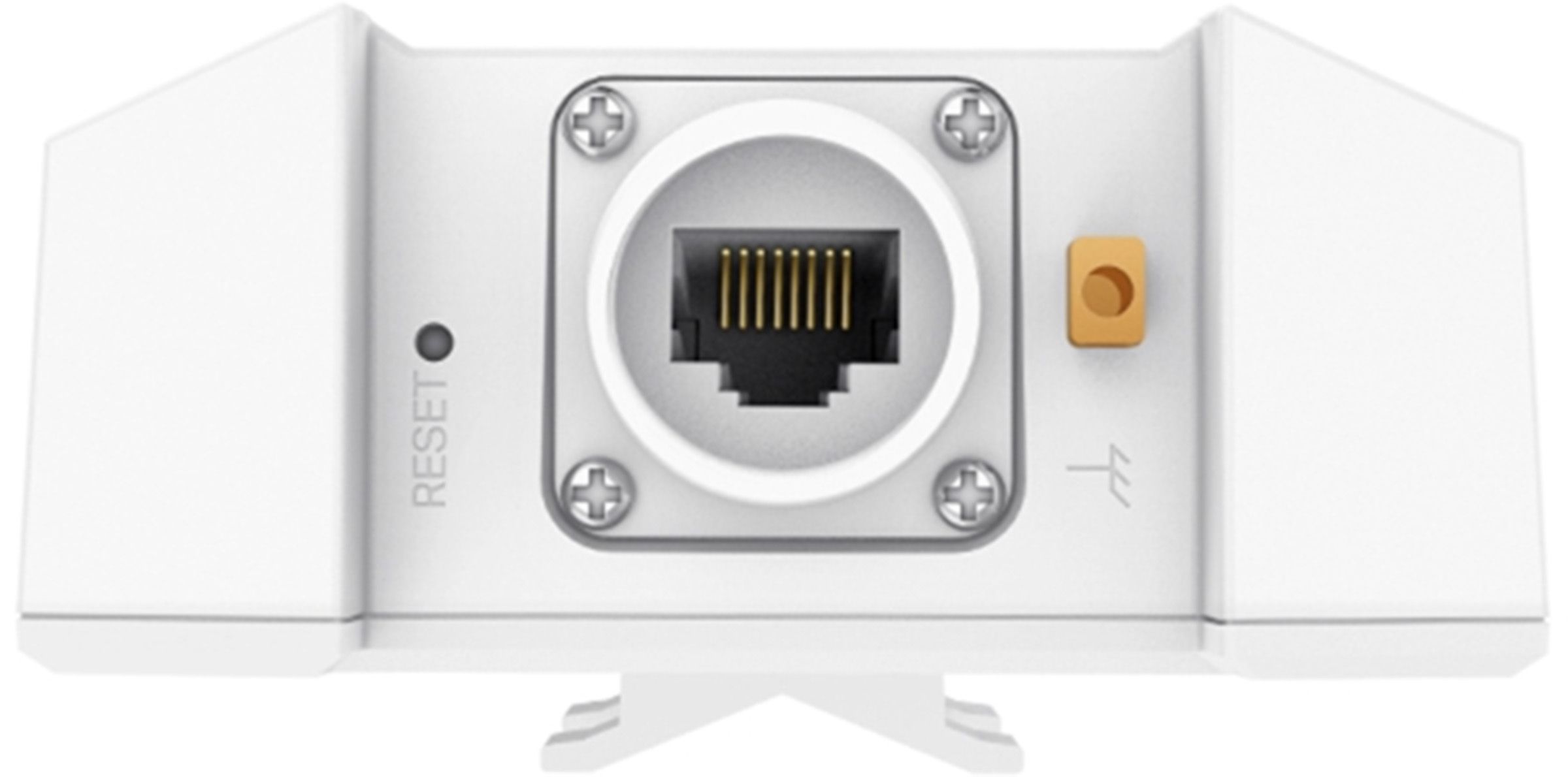

Interface 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Bouton Reset
Alimentation • 802.3at PoE
• 48V/0.5A Passive PoE (PoE Adapter Included)
Consommation • 12.5 W for PoE
• 10 W for DC
Dimensions (LxPxH) • 280.4×106.5×56.8 mm (without antenna & mounting kit)
Antennes • 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Etanche IP67

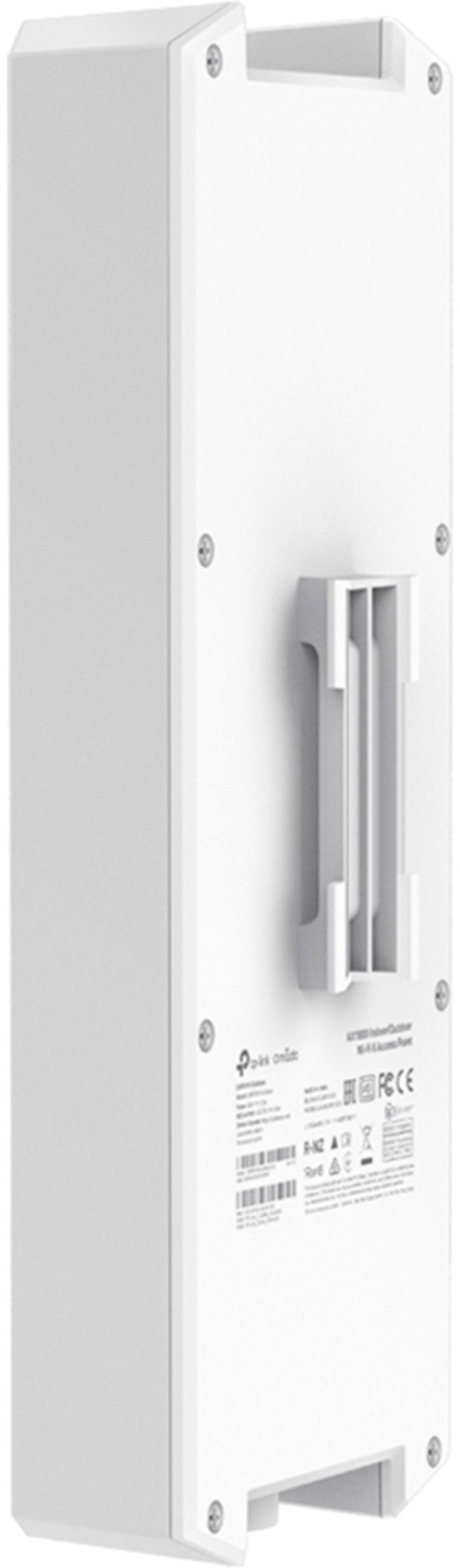

Montage Pole/Wall Mounting (Kits included)
Caractéristiques WiFi

Concurrent Clients 250+△
Standards WiFi IEEE 802.11ax/ac/n/g/b/a
Fréquence WiFi 2.4 GHz, 5 GHz
Débits Maximaux • 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
• 802.11ac: 5G:6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78 Mbps to 300 Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Fonctions WiFi • 1024-QAM
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO

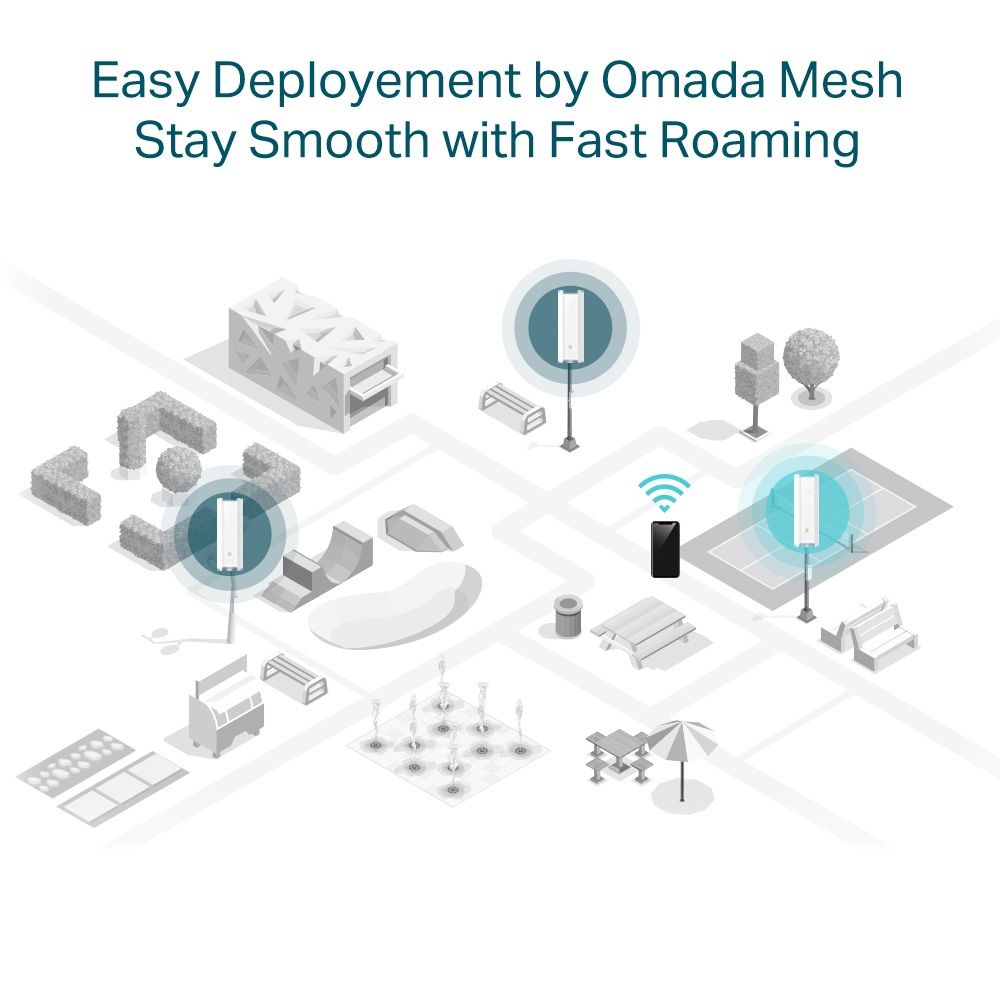

Omada Mesh
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Sécurité WiFi • Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Puissance de transmission • CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
• FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
Administration

Omada App Yes

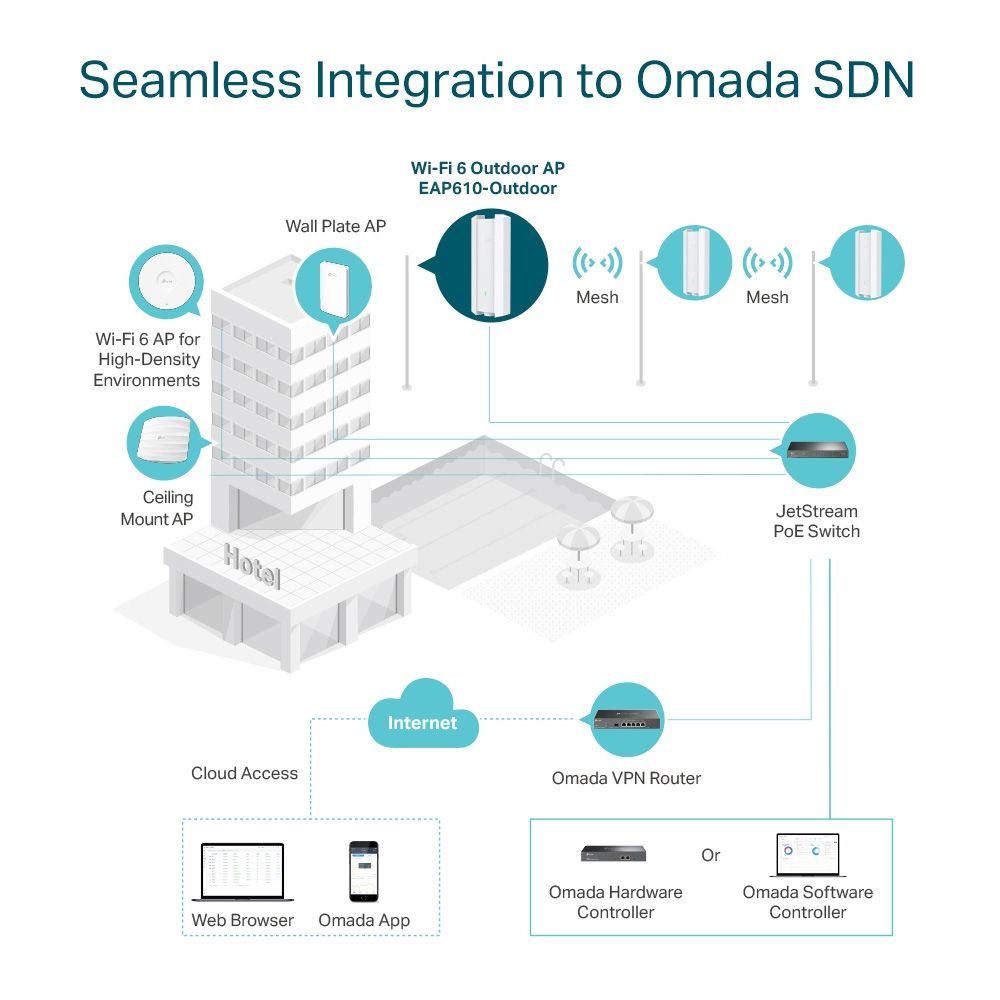

Administration Centralisée • Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Accès Cloud Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Alertes Email Yes
Administration de contrôle d'accès des adresses MAC Yes
SNMP v1, v2c
Journal système local/distant Yes
SSH Yes
Administration par interface WEB Yes
Administration Niveau 3 Yes
Administration Multi-sites Yes
Administration VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
Autres

Certification CE, FCC, RoHS
Contenu de l'emballage • Access Point EAP610-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Waterproof Kits
Waterproof Antenna
Installation Guide
Système requis Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environnement • Operating Temperature: -30–70 ℃
Storage Temperature: -40–70 ℃
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
